A high limit switch quietly guards your pool or spa heater from overheating, tripping the circuit when water or stack temperatures cross a safe threshold. When that little sensor fails, the heater throws error codes, refuses to fire, or worse, keeps running past the line. Picking the right replacement means matching the part number, the temperature rating, and the heater family before you click order.
A Snapshot Of The Selections
Optimum 2PK High Limit Switch for Pentair MiniMax & PowerMax
Funmit 42002-0024S Stack Flue Sensor for Pentair Sta-Rite
Funmit 42001-0063S High Limit Switch for Pentair Spa Heater
Funmit Stack Flue Sensor and High Limit Switch Kit
Bzcovac 31091 High-Temperature Limit Switch 190°F
RUHUALIFE Pool Heater Repair Kit for Pentair Sta-Rite
RUHUALIFE Five-Sensor Pool Heater Repair Kit
The Strengths Of Each Pick
Optimum Pool Technologies ships a pair of 150°F high limit switches aimed squarely at older Pentair Sta-Rite MiniMax and PowerMax gas heaters. Carrying one spare on the shelf pays off the first time your unit throws an ignition fault, since the swap itself usually takes less than an hour with a basic screwdriver and a bit of patience. The build looks comparable to the OEM switches these heaters left the factory with, so you are not forcing a weird retrofit into a tight housing.
These aftermarket replacements cross to Pentair part numbers 071017 and P12848, which covers a healthy chunk of the MiniMax lineup still running in backyard pads. Keeping both switches together also means you replace the matched pair in one go, which is the textbook approach for thermal cutoffs that trip unevenly when one ages faster than the other.
Points In Its Favor
- Twin pack gives you a backup switch for the next failure without a second order.
- 150°F cutoff matches the original MiniMax and PowerMax spec.
- Cross-reference to OEM part numbers 071017 and P12848 simplifies the match.
- Direct aftermarket fit, so no wiring modifications or shimming.
Things To Consider
- Narrow model coverage, so it is useless for MasterTemp or Max-E-Therm owners.
- Aftermarket origin means you may want to keep the OEM part number in mind if warranty questions come up.
Who It Suits Best
Pool owners with a Pentair Sta-Rite MiniMax or PowerMax heater who want a budget-friendly matched pair ready to swap in.
A Better Fit Elsewhere
MasterTemp or Max-E-Therm households should reach for the Funmit 42001-0063S High Limit Switch for Pentair Spa Heater, which is built for that family instead.
Funmit’s 42002-0024S stack flue sensor steps in for the small temperature probe that sits inside the heater exhaust path. When the stack runs hotter than it should, this sensor tells the control board to shut things down, which is why a failing one often shows up as a recurring E-02 or E-05 error code on Pentair MasterTemp and Max-E-Therm units. The stainless steel probe body is the right call for a sensor living in hot, corrosive exhaust gas.
Compatibility covers the Pentair Sta-Rite Max-E-Therm SR200, SR333, and SR400 lines plus MasterTemp pool and spa heater electrical systems, so most mid-2000s Pentair owners can use this single part. Unlike the Optimum switch above, which is a one-temperature cutoff, this is a continuously variable thermistor, and the harness plugs in without splicing.
What Earns Its Place
- Stainless steel body resists the heat and corrosion of the exhaust stream.
- Plugs into the OEM harness, so no wire cutting or soldering.
- Replaces OEM part 42002-0024S, a common MasterTemp and Max-E-Therm failure point.
Trade Offs
- Only handles the stack sensor, so a tired high limit switch still needs its own part.
- Confirming the part number on the existing sensor before ordering avoids the usual return-and-reorder cycle.
Made For
DIY troubleshooters chasing down a stack-temperature error code on a MasterTemp or Max-E-Therm pool and spa heater.
Consider Something Else When
If the high limit switch is the suspected culprit, the Funmit 42001-0063S High Limit Switch for Pentair Spa Heater targets the water-side cutoff instead.
The 42001-0063S is the water-side high limit switch that trips when spa water pushes past 135°F. It is the part you replace when the heater refuses to fire after a long soak, the display throws a high-temperature code, or the unit runs briefly and then goes into lockout. Funmit builds this one in stainless steel, so corrosion around the threaded probe is less of a concern over the years.
Compatibility is wide enough to cover Pentair Sta-Rite, MasterTemp, and Max-E-Therm pool and spa heater electrical systems. The switch also cross-references to 42001-0064S, HMXHLI2932, HAXHLI1930, and STA-151-6255, which gives you a soft landing if the original label has faded past reading.
Useful Highlights
- 135°F trip protects spa users from genuinely scalding water.
- Stainless steel construction holds up to repeated wet-dry cycles.
- Cross-references multiple OEM part numbers, so a faded label does not stall the repair.
Worth Noting
- Single-switch buy, so a matching spare costs a second order.
- Does not address stack flue faults, which point back to the 42002-0024S sensor in the previous pick.
Right Fit For
Spa owners with a Pentair MasterTemp or Max-E-Therm heater who hit a high-temperature lockout after a heavy soak session.
Skip It When
Pool households running the older Sta-Rite MiniMax lineup should reach for the Optimum 2PK High Limit Switch for Pentair MiniMax & PowerMax instead.
Funmit pairs the 42002-0024S stack flue sensor with the 42001-0063S high limit switch in a single order, so you swap both thermal sensors during the same service visit. That is a smart move because aged heaters often have both probes drifting, and replacing just the obvious one sometimes leads to a callback a few weeks later. Compared to buying the two switches separately, this kit keeps the trip logic fresh on both sides in one go.
Compatibility is the same as the previous two picks, spanning Pentair MasterTemp and Sta-Rite Max-E-Therm pool and spa heater electrical systems. The sensors are described as made of sturdy stainless steel with smooth threads, which helps the probes thread into a corroded bung without binding on the way in.
The Value In It
- Two key thermal sensors in one order, ideal for a full safety refresh.
- Stainless steel body on the stack sensor handles exhaust heat cleanly.
- Designed for the popular MasterTemp and Max-E-Therm lines.
Points To Keep In Mind
- You only need this if both sensors are suspect; the standalone single-switch picks are leaner buys.
Best Suited To
Service-minded pool owners doing a thorough thermal-sensor service on a Pentair MasterTemp or Max-E-Therm heater.
Another Choice May Suit
For a much wider recommissioning job, the RUHUALIFE Pool Heater Repair Kit adds a thermistor to the same two sensors.
Bzcovac’s 31091 is the odd pick in this list because it serves RV furnaces rather than pool heaters, but it illustrates the same thermal cutoff principle. The 190°F trip opens the circuit if the heat exchanger runs away, which is the classic Atwood, Hydro Flame, and Dometic furnace failure mode. Carrying one in the parts drawer makes sense for anyone winter-camping or living full-time in an RV with an aging furnace.
The build is described as resisting vibration and temperature swings, which is the operating reality of a furnace mounted over the wheel well. Unlike the Pentair parts above, this one is purely mechanical, so the swap takes a few minutes with a screwdriver and a flashlight under the coach.
The Upside
- 190°F safety cutoff matches the OEM spec for many RV furnaces.
- Targets Atwood, Hydro Flame, and Dometic brands in one part number.
- Vibration-resistant construction suits a moving vehicle.
Some Limits To Know
- It is an RV furnace part, not a pool heater part, so it does not solve Pentair fault codes.
- Owners commonly find that the harness connector varies slightly between furnace generations, so visual comparison against the old part helps before install.
Who Should Grab It
RV owners with an Atwood, Hydro Flame, or Dometic furnace who want a pre-emptive thermal cutoff on board for shoulder-season trips.
Look Elsewhere When
For actual pool heater work, the Funmit 42001-0063S High Limit Switch for Pentair Spa Heater is the matching part.
Quick Facts

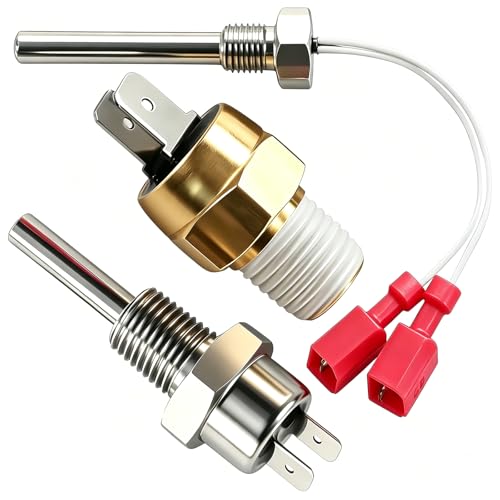

RUHUALIFE’s three-piece kit pairs the stack flue sensor, the high limit switch, and the heater thermistor in one box. That makes it appealing when the heater has been off the pad for a season, because all three temperature sensors tend to drift on the same timeline. Compared to the two-sensor Funmit kit above, this one adds the thermistor that feeds inlet and outlet temperature readings to the control board.
Fitment covers MasterTemp 250, MasterTemp 400, Max-E-Therm, and Sta-Rite SR200, SR333, and SR400 models, so the kit is genuinely useful across the Pentair mid-size line. Part number cross-references to 42002-0024S, 42001-0063S, and 42001-0053S keep the match clear for owners who still have the original bag or invoice.
What Stands Out
- Three thermal sensors cover stack, water, and thermistor functions in one order.
- Broad fitment across the Pentair MasterTemp and Max-E-Therm families.
- Pulls multiple part numbers into a single shopping decision.
Honest Caveats
- More parts than a one-fault repair, so a quick swap may not need the full bundle.
- Not every Pentair model in the family uses all three sensors, so verifying the wiring diagram is worthwhile.
Who Will Love This
Heater owners doing a recommissioning job on a Pentair MasterTemp or Max-E-Therm after a long off-season.
Reach For A Different Pick When
The five-sensor RUHUALIFE kit suits a deeper overhaul that also touches water pressure and gas cutoff.
RUHUALIFE’s flagship kit bundles five sensors: the stack flue sensor, thermistor, high limit switch, water pressure switch, and a 140°F gas shutoff switch. That covers most of the safety interlocks a Pentair MasterTemp or Max-E-Therm heater relies on, which is helpful when the unit has multiple persistent fault codes stacking up. The operating range of the stack flue sensor runs from -20°C to 105°C, while the thermistor spans -20°C to 80°C.
Like the previous RUHUALIFE kit, fitment targets the SR200, SR333, SR400, MasterTemp 250, MasterTemp 400, and Max-E-Therm models, so this is a single solution for an entire Pentair mid-size fleet. The expanded sensor list is aimed squarely at error codes E-02, E-05, and E-06, which the source identifies as the usual suspects for the stack and water temperature systems.
The Case For It
- Five sensors handle stack, water, thermistor, pressure, and gas cutoff functions.
- Targets specific Pentair error codes E-02, E-05, and E-06 with documented operating ranges.
- Stainless steel stack sensor and threaded thermistor body for corrosion resistance.
Worth Bearing In Mind
- Bulkier bundle than most pool owners will ever need in one season.
- Verify each part number against the heater’s wiring diagram before installing, since not all sensors are used on every sub-model.
The Right Fit
Service technicians or deeply hands-on owners bringing a Pentair MasterTemp or Max-E-Therm heater back from extended downtime.
Swap It Out When
Single-fault fixes point back to the Funmit 42001-0063S High Limit Switch for Pentair Spa Heater for water-side swaps alone.
Key Things To Weigh Before You Replace A Pool Heater Sensor
The single most important step is matching the part number on the original sensor, not the heater model alone. Pentair cross-references the same model under several part numbers over the years, and a half-inch thread difference or a different connector pin can make a “compatible” switch useless. Pull the existing sensor out and read the label before you order anything.
The trip temperature matters too. Spa-side high limit switches typically trip at 135°F, pool-side switches run higher, and stack flue sensors are variable rather than fixed. Installing a switch rated below your operating temperature will trip the heater every time it gets warm, and a switch rated too high defeats the safety purpose.
Build material is a quiet but real factor. Stainless steel probes and threaded bodies hold up to repeated wet-dry cycles and exhaust heat, which matters in coastal or chlorinated environments. Composite or potted switches can work fine indoors, but the long view favors metal in a pool pad.
Finally, think about whether to buy a single switch or a kit. A kit only pays off when the heater has multiple age-related faults or has been off the pad for a season. For a one-fault code, the single-sensor picks keep the repair tight and the spares drawer uncluttered.
Quick Things To Think About
Pitfalls Shoppers Hit
The most common mistake is buying by heater model alone and ignoring the part number, which leads to a switch that looks right but trips at the wrong temperature. Another is over-tightening the new sensor on install, which cracks the threads and creates a slow leak that does not show up until the next rain. A third is replacing only the sensor the code points to, when a neighboring thermal probe is the same age and about to follow it.
Where The Extra Money Goes
A premium kit adds more sensors in one box, broader fitment across Pentair model years, and stainless steel construction in the components exposed to heat and water. For a single-fault repair, the upgrade rarely pays back, but for a full recommissioning, it removes the back-and-forth of ordering parts one by one. Spending up also tends to buy clearer documentation, which matters for first-time DIYers tracing a Pentair wiring diagram.
Frequently Asked Questions
How do I know which high limit switch my pool heater needs?
Open the service panel and read the part number stamped on the existing sensor, then match that to the replacement listing. The heater model narrows the field, but the part number on the sensor is the source of truth.
Can I install a high limit switch without draining the pool?
Most pool-side high limit switches are mounted on the heat exchanger header, so the heater needs to be isolated and depressurized but the pool itself stays full. Always shut off gas and power before opening the heater cabinet.
How long does a high limit switch usually last?
Most thermal sensors last five to ten years, depending on runtime, water chemistry, and heat exposure. Heaters that cycle heavily in hot climates tend to wear sensors faster than seasonal-use backyard pools.
What happens if the high limit switch is bypassed?
The heater can run past its safe water or stack temperature, which risks scalding water, heat exchanger damage, and an exhaust path that is far hotter than designed. The switch should always be replaced, never jumpered.
Is an aftermarket high limit switch as safe as the OEM part?
Aftermarket switches that match the OEM part number, trip temperature, and connector type are widely used in the field, though OEM may suit stricter warranty environments. Either way, the install must be clean and the thread sealed to prevent leaks.
Wrap Up
The right high limit switch is the one that matches the part number, the trip temperature, and the heater family on the data plate. For MiniMax and PowerMax owners, the Optimum twin pack is a budget-friendly refresh, while MasterTemp and Max-E-Therm households get more flexibility from the Funmit and RUHUALIFE single-sensor and kit options. Match carefully, install patiently, and the heater should run quietly through another swim season.
